導電墊圈 |
||||
|

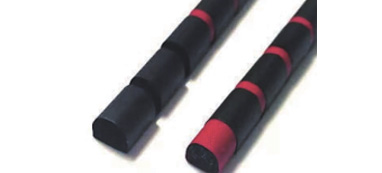

WF Series |
Conductive Fabric Wrapped Foams Max. Compression Ratio: ≥50% Surface Resistance (ohms): ≤0.07 Compression Set (70℃,22hours): ≤5% Shielding Efficiency: ≥60 |
CFS Series |
Conductive Foam Total Thickness (mm): 0.2-4.0 XY- Resistance (ohms): <1 Z- Resistance (ohms): <0.5 |
|
|
WP Series |
Conductive Fabric Wrapped Foams Max. Compression Ratio: ≥50% Surface Resistance (ohms): ≤0.07 Compression Set (70℃,22hours): ≤5% |

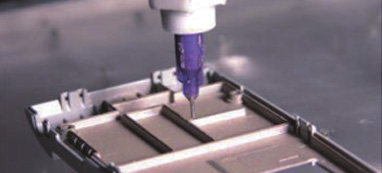

CSRF045 Series |
Form-In-Place EMI Gasket Resin : Silicone Hardness (Shore A): 46 (Customizable) Volume Resistivity (Ω·cm): 0.01 Shielding Efficiency: >80 |
|
|
Air Loop |
Conductive Air Loop Shape: Type D, type P, customizd as required rface Resistance (ohms): ≤0.05 Suggested Compression Ratio: 25-40% Shielding Efficiency: >60 |
SR Series |
SMT Rubber Gasket Uasge Temperature: -40℃~+280℃ Elastomer Hardness (Shore A): 50 Recoverage Ratio after 30%*5,000 times: Typical 90% Volume Resistance: Typical 0.1Ω |
|
|
PO/POS Series |
Conductive Foam Total Thickness (mm): 0.3-4/0.2-3.0 XY- Resistance (ohms): <0.5 Z- Resistance (ohms): <0.2 Shielding Efficiency: ≥60/≥85 |

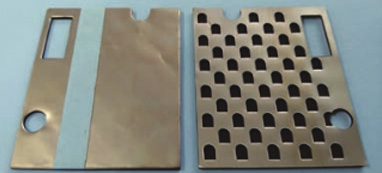

CPC Series |
Thermally and Electrically Conductive Cushion Gasket Total Thickness (mm): 1.0-3.0 Thermal Conductivity (in-plane) (W/m·K) : 400 Compression Set 70℃: ≤5% Shielding Efficiency: ≥60 |
|
